MP 100 - MP 120 - TR 100 - TR 150 - TK 100 - TK 150 - TN 100 - TN 150 - LV 100 - VT 100 - HD 100 - HD 150 - CT 100 - TM 200 - MP 200 - MP 202 - VT 200 - HD 200 - VT 300 - AMI 300 - AMI 301 - SMARTPRO Probes

MP 100
Applications
For low differential pressure

Measurement range
MP 100: from 0 to 1000 Pa • Resolution > 1 Pa
MP 101: from 0 to 1000 mmH₂O• Resolution > 0.1 mmH₂O (from 0 to ±200 H₂O) and 1 mm H₂O above

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions * Micromanometer
Pressure, depression, differential pressure, manual auto-zero, function Hold, min/max values

MP 120
Applications
For the low differential pressure and air velocity with Pitot tube
Pressure and air velocity with Pitot tube

Measurement range * Pressure and air velocity with Pitot tube
Pressure: from 0 to ±1000 Pa • Resolution > 1 Pa
Air velocity: from 2 to 40 m/s • Resolution > 0.1m/s

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions
* Micromanometer: pressure, negative pressure, differential pressure, manual auto-zero, selection of units (Pa, mmH₂O. in Wc, min/max values
* Air velocity with Pitot: air velocity, manual auto-zero, selection of units (m/s and fpm), hold, min/max

TR 100
Applications
For measure of Pt100 ohms temperature

Measurement range:
From -100 to +400°C • Resolution : 0,1°C (-100 to +400°C) 1°C above
Pt100 channels: 1 or 2, for TR100 or TR102

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions * Pt100 Thermometer
Temperature, hold, min/max, Delta T (only TR102)

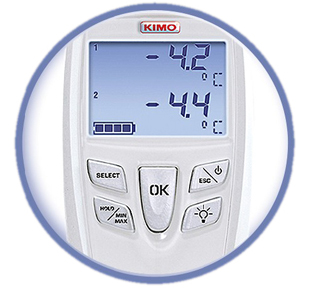

TR 150
Special for the agro-food industry

TK 100
Applications
For the measure of thermocouple K, J or T temperature

Measurement Range
From -200 to +1300°C • Resolution : 0.1°C
1 or 2 thermocouple K, J or T channels (for TK100 or TK1002)

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions * K Thermocouple Thermometer
Temperature, hold, min/max, Delta T (TK102)

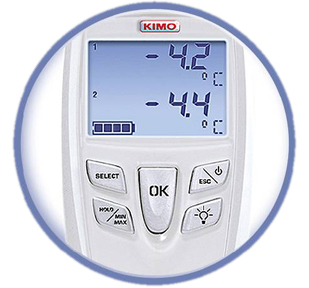

TK 150
Special for the agro-food industry

TN 100
Applications
For the measure of temperature with a coefficient probe for negative temperature

Measurement Range
From -40 to 100 °C • Resolution: 0.1°C
1 or 2 channels, according to model

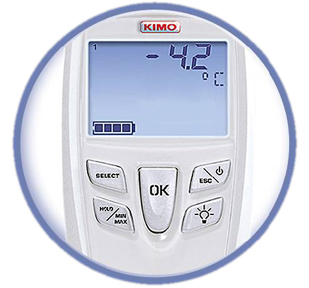

TN 150
Special for the agro-food industry

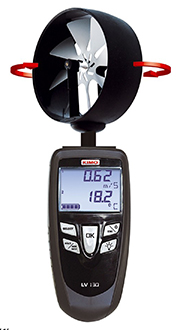

LV 100
Applications
For measure of air velocity, air flow and temperature

Dispatched with 100mm dia. vane probe

Measurement range
* LV 100
Air velocity: from 0.80 to 40 m/s • Resolution: 0.1
Temperature: from -20 to +80°C • Resolution: 0.1°C
* LV 110
Air velocity: 0.25 to 35 m/s • Resolution: 0.01 (<3 m/s) or 0.1 above

Air flow: from 0 to 99999 m³/h • Resolution: 1 m³/h
Temperature: from -20 to +80°C • Resolution: 0.1°C

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions
* Anemometer: air velocity, air flow and air flow with cone (with Ø100mm vane) (LV 110), auto-average, selection of units (m/p, fpm, Km/h), hold, min/max
* Pt100 Thermometer (integrated in vane probe): Pt100 temperature, auto-average, choice of units (°F or °C), hold, min/max values

VT 100
Applications
For measure of air velocity, air flow and temperature

Dispatched with a 8mm dia. hotwire probe and a calibration certificate.

Measurement range
Air velocity: from 0 to 30 m/s • Resolution: 0.01 (<3 m/s) or 0.1 above
Air flow with hotwire probe: 0 to 99999 m³/h • Resolution: 1 m³/h
Temperature: from -20 to +80°C • Resolution: 0.1°C

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions
* Hotwire anemometer: air velocity, flow (direct measure to cones through openings), auto average, selection of units (m/s, fpm, Km/h, cu m/h, l/s, cfm, cu m/s) hold, min/max
* Pt100 thermometer (integrated in hotwire probe): temperature, selection of units (°F or °C), hold, min/max

HD 100
Applications
For measure of hygrometry and temperature

Dispatched with a hygrometry probe

Measurement range
Humidity: from 5 to 95 %RH • Resolution: 0.1 %RH
Temperature: from -20 to +70°C • Resolution: 0.1°C

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions
Relative humidity, temperature, dew point, selection of units, hold, min/max

HD 150
Special for the agro-food industry

CT 100
Applications
For the measure of tachometry

CT 100 0: dispatched with optical tachometry probe and calibration certificate.
CT 100 C: dispatched with optical tachometry probe, contact adaptor and calibration certificate.

Measurement range
Optic probe (CT100 O): from 60 to 60000 RPM • Resolution: 1 RPM
Contact probe (CT100 C): from 30 to 2000 m/min • Resolution: 1 RPM

Version E: dispatched with a calibration certificate and a carrying case.
Version S: dispatched with an adjusting certificate and a carrying poach.

Functions
* Optical Tachometer: rotation speed, lineal speed, Hold function, min/max values, selection of units (tr/min and RPM)
Contact Tachometer: rotation speed, lineal speed, Hold function, min/max values, selection of units (m/min, ft/min and in/min

TM 200
Applications : For 4 channels temperature measure

Functions : Temperature with thermocouple K and/or PT100

Measurement Range :
Pt100 : -100 to +400°C • Resolution 0,1°C
Thermocouple K : -200 to +999°C • Resolution 0,1°C and +1000 to 1300°C • Resolution 1°C

Detailed Functions :
Pt100 Thermometer(with SMART PRO System)
Pt100 temperature(2 channels), delta T, units choice.
Thermocouple K Thermometer
Pt100 Thermometer(2 voies), delta T, units choice.
Units °C, °F, K

MP 200
Applications : For the measure of pressure, air velocity and temperature

Measurement range :
Pressure : 0 to 1000 mmCE • Resolution 0,1 mmH₂O
Air velocity with Pitot tube : 4 to 100 m/s • Resolution 0,1 m/s
Air velocity with Debimo : 4 to 100 m/s • Resolution de 0,1 m/s
Air flow with Pitot tube : 0 to 65.000 m³/h • Resolution 0,1 m³/h
Air flow with Debimo : 0 to 65.000 m³/h • Resolution 0,1 m³/h
Temperature (thermocouple K) : -200 to +999°C • Resolution 0,1°C and +1000 to +1300°C • Resolution 1 °C

Detailed Functions:
MICRO-MANOMETER
Pressure, depressure, differential pressure, Integration of pressure (0 to 9), point / point average, point / point automatic average, automatic average
AIR FLOW AND AIR VELOCITY WITH PITOT TUBE
Point / point average, point / point automatic average, automatic average, K Factor Temperature Compensation (manual and automatic)
AIR FLOW AND AIR VELOCITY WITH DEBIMO :
Automatic average, K Factor, temperature compensation (manual and automatic)
THERMOCOUPLE K THERMOMETER
Thermocouple K (2 channels), Delta T

MP 202
Applications : For the measure of pressure, air velocity and temperature

Measurement range :
Pressure : 0 to 1000 Pa • Resolution 1 Pa
Air velocity with Pitot tube : 2 to 40 m/s • Resolution 0,1 m/s
Air velocity with Debimo : 2 to 40 m/s • Resolution de 0,1 m/s
Air flow with Pitot tube : 0 to 65.000 m³/h • Resolution 1 m³/h
Air flow with Debimo : 0 to 65.000 m³/h • Resolution 1 m³/h
Temperature (thermocouple K) : -200 to +999°C • Resolution 0,1°C and +1000 to +1300°C • Resolution 1 °C

Detailed Functions:
MICRO-MANOMETER
Pressure, depressure, differential pressure, Integration of pressure (0 to 9), point / point average, point / point automatic average, automatic average, air flow with K Factor
AIR FLOW AND AIR VELOCITY WITH PITOT TUBE
Point / point average, point / point automatic average, automatic average, Temperature Compensation(manual and automatic)
AIR FLOW AND AIR VELOCITY WITH DEBIMO :
Automatic average, temperature compensation (manual et automatic
THERMOCOUPLE K THERMOMETER
Thermocouple K (2 channels), Delta T

VT 200
Applications : For measure of air velocity, air flow and temperature

Functions : Air flow, air velocity and temperature
Supplied with hotwire probe (VT200 F) or telescopic hotwire probe (VT200 T) or vane probe Ø 70mm(VT200 H) or vane probe Ø 100mm(VT200 L) or vane probe Ø 16mm (VT200 P), calibration certificate and transport case.
Measurement range
Air velocity VT200 F and T : 0 to 30 m/s • Resolution 0,01 <3m/s, 0,1 m/s beyond
Air velocity VT200 H : 0,3 to 35 m/s • Resolution 0,1 m/s
Air velocity VT200 L : 0,20 to 35 m/s • Resolution 0,01 <3m/s, 0,1 m/s beyond
Air velocity VT200 P : 0,6 to 40 m/s • Resolution 0,1 m/s
Air flow : 65000 m³/h • Resolution 1 m³/h
Temperature : -100 to +400 °C • Resolution 0,1°C

Detailed Functions :
ANEMOMETER : Automatic air velocity averaging, point / point averaging, automatic point / point averaging, units choice : m/s, fpm, air flow with cones (VT 200 F and VT 200 T)
PT100 THERMOMETER (SMART PRO System) : Pt100 Temperature (2 channels), Delta T, Units choice : °C, °F, K
FLOWMETER : Air Flow and air flow with vane probe (VT200 L), automatic averaging, point / point averaging, automatic point / point averaging, Units choice : m3/h, cfm, l/s, m3/s
Others functions : Hold, min/max, printer output, manual and automatique data storage (store 8000 points)...

HD 200
Applications - Pour les mesures d’hygrométrie et de température

Fonctions : Humidité, Température

Livré avec sonde d'hygrométrie et certificat d'étalonnage

Plage de mesure :
Humidité relative : 3 à 98 %HR • Résolution de 0,1 %HR
Humidité absolue : 0 à 190 g/Kg • Résolution de 0,1 g/Kg
Point de rosée : -20 à +80°C • Résolution à 0,1°C
Température Pt100 : -100 à +400°C • Résolution de 0,1°C
Température ambiante : -20 à +80°C • Résolution de 0,1°C

Fonctions :
Hygromètre (muni du système SMART PRO)
humidité relative et absolue, point de rosée ambiant et de surface et température humide
Thermomètre Pt100 (muni du système SMART PRO)
Température Pt100 2 voies, Delta T dynamique
Psychromètre
Température sèche et humide, humidité relative et absolue, enthalpie
Unités de mesure
Humidité : %HR et g/Kg
Température : °c, °F, K

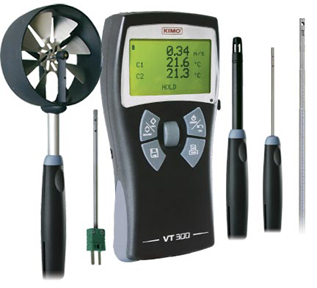

VT 300
Applications : For whole measure in temperature, air flow, air velocity, humidity and tachometry
Multifunction Portable Device : in temperature, air flow, air velocity, humidity and tachometry

Measurement range :
VANE AIR VELOCITY
Measurement range :
•Air velocity : see probes section (below) - Temperature -20 to +80°C - Resolution 0,1°C
•Air flow : 0 to 65.000 m³/h - Resolution 1 m³/h
HOTWIRE AIR VELOCITY
Measurement range :
•Air velocity : 0 to 30 m/s - Resolution 0,01 m/s <3 m/s, 0,1 m/s beyond - Temperature -20 to +80°C - Resolution 0,1°C
•Débit : 0 to 65.000 m³/h - Résolution 1 m³/h
HYGROMETRY
Measurement range :
•Humidity : 3 to 98 %HR - Resolution 1% HR
•Dew point : -20 to +80°C - Resolution 0,1°C
TEMPERATURE
Measurement range :
•Pt100 (2 channels) : -100 to +400°C - Resolution 0,1°C < 250°C, 1°C beyond
•Thermocouples K (2 channels) : -200 to +1300°C - Resolution 0,1°C < 999°C, 1°C beyond
TACHOMETRY
Measurement range :
•Optic : 60 to 50.000 RPM - Resolution 1 RPM
•Contact : 30 to 20.000 RPM - Resolution de 1 tr/min
and 4 to 2500 m/min - Resolution 0,1 m/min

Functions :
MICROMANOMETER :
Pressure, depressure, differential pressure, Integration of pressure (0 to 10), point/point averaging, automatic point/point averaging, automatic averaging
Air flow with K Factor
Air velocity and air flow with Pitot tube : point/point averaging, automatic point/point averaging, temperature compensation.
Air velocity and air flow with Debimo : automatic averaging, temperature compensation
HOTWIRE THERMO-ANEMOMETER :
Air velocity, point/point averaging, automatic point/point averaging, automatic averaging, Air flow in duct and with cones.
Pt100 temperature integrated in the probe
VANE THERMO-ANEMOMETER :
Air velocity, Air flow and air flow with cone (Ø100 mm vane), point/point averaging, automatic point/point averaging, automatic averaging
Pt100 temperature integrated in the probe
THERMOMETER :
Pt100 temperature : 2 channels, delta T
Thermocouple K temperature: 2 channels, delta T
THERMO-HYGROMETER :
Relative and absolute humidity, Dew point
Pt100 temperature integrated in the probe
TACHOMETRY :
Optic Contact

AMI 300
Applications :For whole measure in pressure, temperature, air flow, air velocity, humidity and tachometry

Multifunction Portable Device :in pressure, temperature, air flow, air velocity, humidity and tachometry
Pressure sensor to 0 - 1000 mmCE

Measurement range :
PRESSURE
•Pressure : 0 to 1000 mmCE - Resolution 1 mmCE
•Air velocity with Pitot tube or Debimo : 4 to 100 m/s - Resolution 0,1 m/s
•Ai flow with Pitot tube or Débimo : 0 to 65.000 m³/h - Resolution 0,1 m³/h
Units of micromanometer : mmH₂O, mBar, kPa, In Wg, mmHg, m/s, fpm, m³/h, cfm, l/s, m³/s
VANE AIR VELOCITY
•Air velocity : see probes section (below) - Temperature -20 to +80°C - Resolution 0,1°C
•Air flow : 0 to 65.000 m³/h - Resolution 1 m³/h
HOTWIRE AIR VELOVITY
•Air velocity : 0 to 30 m/s - Resolution 0,01 m/s <3 m/s, 0,1 m/s beyond - Temperature -20 to +80°C - Resolution 0,1°C
•Air Flow : 0 to 65.000 m³/h - Resolution 1 m³/h
HYGROMETRY
•Humidity : 3 to 98 %HR - Resolution 0,1% HR
•Dew point : -20 to +80°C - Resolution 0,1°C
TEMPERATURE
•Pt100 (2 channels) : -100 to +400°C - Resolution 0,1°C < 250°C, 1°C beyond
•Thermocouples K (2 channels) : -200 to +1300°C - Resolution 0,1°C < 999°C, 1°C beyond
TACHOMETRY
•Optic : 60 to 50.000 RPM - Resolution 1 RPM
•Contact : 30 to 20.000 RPM - Resolution de 1 tr/min
and 4 to 2500 m/min - Resolution 0,1 m/min

AMI 301
Applications : For whole measure in pressure, temperature, air flow, humidity and tachometry
Multifunction Portable Device : in pressure, temperature, air flow, humidity and tachometry
Pressure sensor to 0 - 1000 Pa

Measurement ranges :
PRESSURE
•Pressure : 0 to 1000 Pa - Resolution 1 Pa
•Air velocity with Pitot tube or Debimo : 2 to 40 m/s - Resolution 0,1 m/s
•Ai flow with Pitot tube or Débimo : 0 to 65.000 m³/h - Resolution 0,1 m³/h
Units of micromanomter : mmH₂O, mBar, kPa, In Wg, mmHg, m/s, fpm, m³/h, cfm, l/s, m³/s
VANE AIR VELOCITY
•Air velocity : see probes section (below) - Temperature -20 to +80°C - Resolution 0,1°C
•Air flow : 0 to 65.000 m³/h - Resolution 1 m³/h
HOTWIRE AIR VELOVITY
•Air velocity : 0 to 30 m/s - Resolution 0,01 m/s <3 m/s, 0,1 m/s beyond - Temperature -20 to +80°C - Resolution 0,1°C
•Débit : 0 to 65.000 m³/h - Résolution 1 m³/h
HYGROMETRY
•Humidity : 3 to 98 %HR - Resolution 0,1% HR
•Dew point : -20 to +80°C - Resolution 0,1°C
TEMPERATURE
•Pt100 (2 channels) : -100 to +400°C - Resolution 0,1°C < 250°C, 1°C beyond
•Thermocouples K (2 channels) : -200 to +1300°C - Resolution 0,1°C < 999°C, 1°C beyond
TACHOMETRY
•Optic : 60 to 50.000 RPM - Resolution 1 RPM
•Contact : 30 to 20.000 RPM - Resolution de 1 tr/min
and 4 to 2500 m/min - Resolution 0,1 m/min

Functions :
MICROMANOMETER :
Pressure, depressure, differential pressure, Integration of pressure (0 to 10), point/point averaging, automatic point/point averaging, automatic averaging
Air flow with K Factor
Air velocity and air flow with Pitot tube : point/point averaging, automatic point/point averaging, temperature compensation.
Air velocity and air flow with Debimo : automatic averaging, temperature compensation
HOTWIRE THERMO-ANEMOMETER :
Air velocity, point/point averaging, automatic point/point averaging, automatic averaging, Air flow in duct and with cones.
Pt100 temperature integrated in the probe
VANE THERMO-ANEMOMETER :
Air velocity, Air flow and air flow with cone (with Ø100mm vane), point/point averaging, automatic point/point averaging, automatic averaging
Pt100 temperature integrated in the probe
THERMOMETER :
Pt100 temperature : 2 channels, delta T
Thermocouple K temperature: 2 channels, delta T
THERMO-HYGROMETER :
Relative and absolute humidity, Dew point
Pt100 temperature integrated in the probe
TACHOMETRY :
Optic
Contact

SMARTPRO Probes
For all applications

All these probes are equipped with the Smart Pro system and are compatible with the portable instruments from Class 200 and 300.
They are supplied with calibration or adjusting certificate (date of calibration displayed when connected to the instrument).
They are automatically recognized when connected to the instrument and are fully interchangeable.

Probes
Pt100, vane, hotwire, hygrometry, tachometry and more

Accessories
Hotwire extension, telescopic extension and more
